  Smile Box

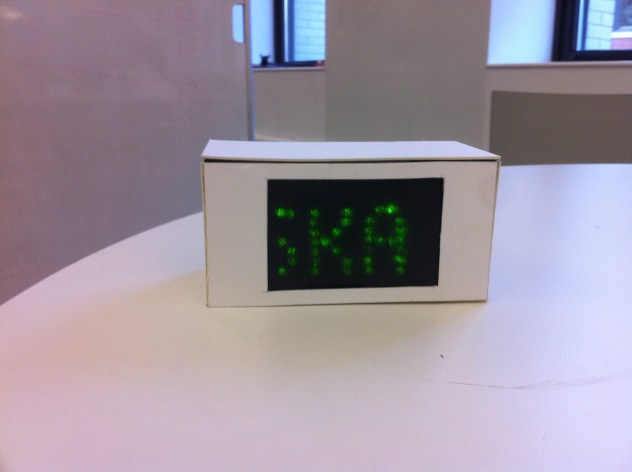

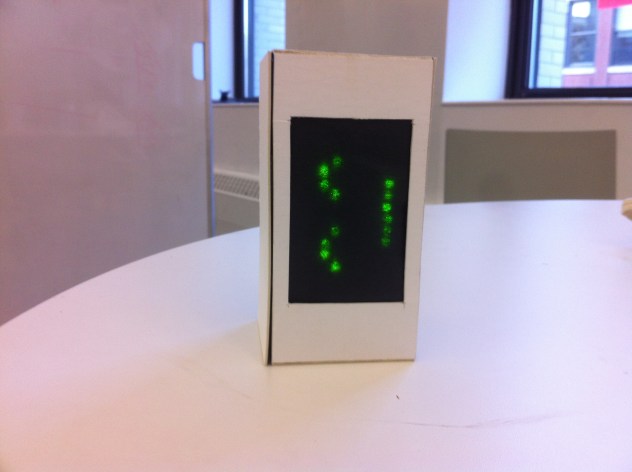

  Using a LOL Shield and tilt sensor, I made an smile box. The smile box greets with text ” HEY SHAKE ME!”. When a user rotate the smile box, it shows smile animation.









  #include “Charliplexing.h”
  #include “Font.h”
  #include “WProgram.h”

  byte line = 0;
  char buffer[10];
  int value;

  int tiltPin = A0;

  int tiltState = 0;

  /* —————————————————————– */
  /** MAIN program Setup
  */
  void setup() // run once, when the sketch starts
  {
  LedSign::Init(); //initiate the screen

  // debounce setup
  pinMode(tiltPin, OUTPUT);
  }
  /* —————————————————————– */
  /** MAIN program Loop
  */
  void loop()
  {
  tiltState = digitalRead(tiltPin);
  if(tiltState == HIGH){
  animation();
  }
  else {
  textScroll();
  }
  }

  void textScroll()
  {
  char test[]=”HEY SKAKE ME!”;

  int8_t x=0,x2=0;
  for(int8_t j=13;j>-100;j–) {
  x=j;
  LedSign::Clear();
  for(int i=0;i<17;i++) {
  x2=Font::Draw(test[i],x,0);
  x+=x2;
  if (x>=13) break;
  }
  delay(80);
  }
  delay(3000);
  }

  void animation(){

  delay(300);
  DisplayBitMap(0);
  DisplayBitMap(1560);
  DisplayBitMap(2340);
  DisplayBitMap(0);
  DisplayBitMap(0);
  DisplayBitMap(0);
  DisplayBitMap(528);
  DisplayBitMap(480);
  DisplayBitMap(0);
  delay(300);
  DisplayBitMap(0);
  DisplayBitMap(1560);
  DisplayBitMap(2340);
  DisplayBitMap(0);
  DisplayBitMap(0);
  DisplayBitMap(0);
  DisplayBitMap(0);
  DisplayBitMap(1008);
  DisplayBitMap(0);
  delay(300);
  DisplayBitMap(0);
  DisplayBitMap(1560);
  DisplayBitMap(2340);
  DisplayBitMap(0);
  DisplayBitMap(0);
  DisplayBitMap(0);
  DisplayBitMap(0);
  DisplayBitMap(12483);
  DisplayBitMap(0);
  delay(300);
  DisplayBitMap(8193);
  DisplayBitMap(9753);
  DisplayBitMap(2340);
  DisplayBitMap(0);
  DisplayBitMap(0);
  DisplayBitMap(0);
  DisplayBitMap(0);
  DisplayBitMap(8385);
  DisplayBitMap(0);
  delay(300);
  DisplayBitMap(14343);
  DisplayBitMap(9753);
  DisplayBitMap(10533);
  DisplayBitMap(0);
  DisplayBitMap(0);
  DisplayBitMap(0);
  DisplayBitMap(8193);
  DisplayBitMap(8385);
  DisplayBitMap(14343);
  delay(300);
  DisplayBitMap(8641);
  DisplayBitMap(1560);
  DisplayBitMap(2340);
  DisplayBitMap(0);
  DisplayBitMap(0);
  DisplayBitMap(288);
  DisplayBitMap(528);
  DisplayBitMap(0);
  DisplayBitMap(8673);
  delay(300);
  DisplayBitMap(8873);
  DisplayBitMap(1560);
  DisplayBitMap(4290);
  DisplayBitMap(0);
  DisplayBitMap(1040);
  DisplayBitMap(10793);
  DisplayBitMap(10249);
  DisplayBitMap(0);
  DisplayBitMap(10373);
  delay(300);
  DisplayBitMap(6150);
  DisplayBitMap(8193);
  DisplayBitMap(8193);
  DisplayBitMap(192);
  DisplayBitMap(288);
  DisplayBitMap(192);
  DisplayBitMap(8193);
  DisplayBitMap(8193);
  DisplayBitMap(6150);
  delay(300);
  DisplayBitMap(2052);
  DisplayBitMap(1512);
  DisplayBitMap(10773);
  DisplayBitMap(5322);
  DisplayBitMap(1320);
  DisplayBitMap(5322);
  DisplayBitMap(10773);
  DisplayBitMap(1512);
  DisplayBitMap(2052);
  delay(300);
  DisplayBitMap(0);
  DisplayBitMap(1560);
  DisplayBitMap(2340);
  DisplayBitMap(0);
  DisplayBitMap(0);
  DisplayBitMap(6150);
  DisplayBitMap(9225);
  DisplayBitMap(1008);
  DisplayBitMap(0);
  delay(300);
  DisplayBitMap(0);
  DisplayBitMap(1560);
  DisplayBitMap(2340);
  DisplayBitMap(0);
  DisplayBitMap(0);
  DisplayBitMap(0);
  DisplayBitMap(12771);
  DisplayBitMap(3612);
  DisplayBitMap(0);
  delay(300);
  DisplayBitMap(0);
  DisplayBitMap(3096);
  DisplayBitMap(4644);
  DisplayBitMap(0);
  DisplayBitMap(0);
  DisplayBitMap(0);
  DisplayBitMap(10249);
  DisplayBitMap(2032);
  DisplayBitMap(0);
  delay(300);
  DisplayBitMap(0);
  DisplayBitMap(1560);
  DisplayBitMap(2340);
  DisplayBitMap(0);
  DisplayBitMap(0);
  DisplayBitMap(0);
  DisplayBitMap(1032);
  DisplayBitMap(1008);
  DisplayBitMap(0);

  }

  void DisplayBitMap(int lineint)
  {
  //int data[9] = {95, 247, 123, 511, 255, 1, 5, 31, 15};

  //for(line = 0; line < 9; line++) {
  for (byte led=0; led<14; ++led) {
  if (lineint & (1<
  LedSign::Set(led, line, 1);
  }
  else {
  LedSign::Set(led, line, 0);
  }
  }

  line++;
  if(line >= 9) line = 0;
  }

  Rate this:


  Reply Cancel reply

  Required fields are marked *

  Name *

  Email *

  Website

  Notify me of new comments via email.

  Notify me of new posts via email.

  Δ

•

  josefayala 1:12 am on November 26, 2011 Permalink | Reply

  Josef Ayala-Wake Box

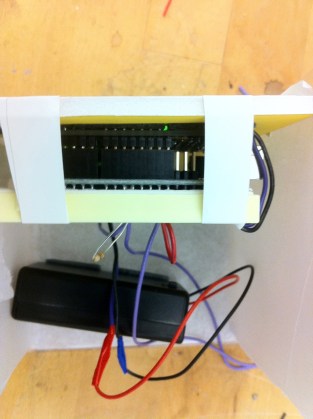

  This project is comprised of an Arduino UNO board, an LoL Shield, and a tilt sensor. Using the tilt sensor when it is attached to a baseball cap should reflect when I am asleep. My head hanging down should show that the tilt sensor is ON and beginning the scrolling text which says “WAKE ME UP YO”. When someone sees this they will ideally wake me up and when I lift my head the tilt sensor would tilt OFF and stop creating the Scrolling Text. The premise for this project is that it would be used in the train station during my evening commute to help me NOT miss my stop in Harlem.













  <code>

  const int buttonPin = A4;     // the number of the pushbutton pin
  int buttonState = 0;         // variable for reading the pushbutton status

  #include “Charliplexing.h”
  #include “Font.h”
  #include “WProgram.h”

  // Technically the number of columns of LEDs minus one
  #define SCREEN_WIDTH 13

  // Scroll delay: lower values result in faster scrolling
  #define SCROLL_DELAY 80

  /* How long to wait after the last letter before
  going back to the beginning and repeating */
  #define REPEAT_DELAY 500

  int textLength, totalPixels;
  char text[]=”WAKE ME UP YO”;

  void setup() {
  // initialize the pushbutton pin as an input:
  pinMode(buttonPin, INPUT);
  LedSign::Init();
  getLength(text, &textLength, &totalPixels);
  }

  void loop(){
  // read the state of the pushbutton value:
  buttonState = digitalRead(buttonPin);

  // check if the pushbutton is pressed.
  // if it is, the buttonState is HIGH:
  if (buttonState == LOW) {
  int x=0;
  for(int j=SCREEN_WIDTH; j>-totalPixels-SCREEN_WIDTH; j–) {
  x=j;
  LedSign::Clear();
  for(int i=0; i<textLength; i++) {

  • += Font::Draw(text[i],x,0);

  if (x>=SCREEN_WIDTH)
  break;
  }
  delay(SCROLL_DELAY);
  }
  delay(REPEAT_DELAY);

  }
  else {

  }
  }

  void getLength(char* charArray, int* lengthPtr, int* pixelPtr) {
  /* Finds the length of a string in terms of characters
  and pixels and assigns them to the variable at
  addresses lengthPtr and pixelPtr, respectively. */

  int charCount = 0, pixelCount = 0;
  char * charPtr = charArray;

  // Count chars until newline or null character reached
  while (*charPtr != ” && *charPtr != ‘\n’) {
  charPtr++;
  charCount++;

  /* Increment pixelCount by the number of pixels
  the current character takes up horizontally. */
  pixelCount += Font::Draw(*charPtr,-SCREEN_WIDTH,0);
  }

  *pixelPtr = pixelCount;
  *lengthPtr = charCount;
  }

  </code>

  Rate this:

  Josef Ayala-Tell Tale Heart Box Iteration 2 and 3. Final Pieces (Hat Piece/Tell Tale Heart). | Making Toys is discussing. Toggle Comments


•

  hirumi 12:20 am on November 26, 2011 Permalink | Reply

  Digital Aquarium

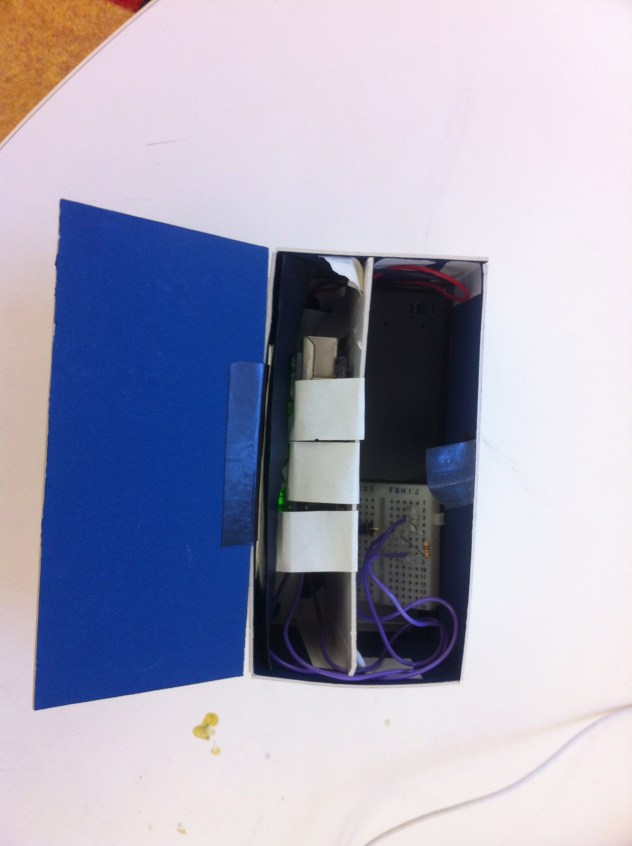

  For this project, I used an arduino, tilt sensor, photocell, and LOLshield to create a digital aquarium. At rest, the fish sits peacefully in its tank. If the tank is disturbed, the water flows and the fish swims around. The fish can also be fed food by placing your hand at the opening of the tank.
