  Sound Performance Toy

  video: Here

  Code is Collapsed Here:

  <pre>int speakerPin= 7;
  int ledPin = 5;
  int photoPin = A5;
  int potPin = A0;
  int var;
  int potDelay;
  int photoDelay;
  int photoVal;  //analogRead of the photocell //set by
  int potVal;  //analogRead of the potentiometer

  int newphotoVal;

  int toneVal;  //set by photo, pot, pot, photo (case 1 -4)

  int switch1 = 11; //red cord
  int switch2 = 12; //orange cord

  int newSwitch1;
  int newSwitch2;

  void setup()
    {
      pinMode(ledPin, OUTPUT);
      Serial.begin(9600);

    }

  void loop()
    {
      newSwitch1 = digitalRead(switch1);

      newSwitch2 = digitalRead(switch2);

      photoVal = analogRead(photoPin);
      potVal = analogRead(potPin);

      potDelay = map(potVal, 0, 1023, 0, 250);
      photoDelay =  map(photoVal, 0, 1023, 0, 250);

      //1st case
      if (newSwitch1 == 1 && newSwitch2 == 1)
    {
     var = 1;
    }
      //2nd case
      if (newSwitch1 ==0 && newSwitch2 == 1)
      {
       var = 2;
      }

      if(newSwitch1 == 1 && newSwitch2 == 0)
      {
       var = 3;
      }

      if(newSwitch1 == 0 && newSwitch2 == 0)
      {
        var = 4;
      }

    switch(var)
    {
      case 1:
      potToLEDphotoToSpeaker(); //case 1
      break;

      case 2:
      photoToLEDpotToSpeaker(); //case 2
      break;

      case 3:
      potToLEDblinkAndSpeaker();
      break;

      case 4:
      photoToLEDblinkAndSpeaker();
      break;

    }
    }

  void photoToLEDblinkAndSpeaker()
  {
    //case 4
  analogWrite(ledPin, HIGH); //analogWrite(pin, value)
  delay(photoDelay);
  analogWrite(ledPin,LOW);
  delay(photoDelay);

  tone(speakerPin, photoVal*2); //instead of *4
  delay(photoDelay);
  noTone(speakerPin);
  }

  void photoToLEDpotToSpeaker()
  {
  //case 2
      analogWrite(ledPin, (photoVal/4));
      tone(speakerPin, potVal*4);
      delay(20);
  }

  void potToLEDblinkAndSpeaker()
  {
    //case 3
  analogWrite(ledPin, HIGH); //analogWrite(pin, value)
  delay(potDelay);
  analogWrite(ledPin,LOW);
  delay(potDelay);

  tone(speakerPin, potVal*4);
  delay(potDelay);
  noTone(speakerPin);
  }

  void potToLEDphotoToSpeaker()
  {
    //case 1
    //pot to LED and photo to speaker
      analogWrite(ledPin, (potVal/4));
      tone(speakerPin, photoVal);
      delay(20);
  }



  Rate this:


  Reply Cancel reply

  Required fields are marked *

  Name *

  Email *

  Website

  Notify me of new comments via email.

  Notify me of new posts via email.

  Δ

•

  itsjennkaye 7:54 pm on November 16, 2012 Permalink | Reply

  Arduino Sound & Light Tool

  Download the code here ›

  Rate this:

•

  Franci Castelli 7:39 pm on November 16, 2012 Permalink | Reply

  Assignment 11/16

  So here is the code and the video.. it doesnt work perfectly with the LED but couldnt figure out why.





  Rate this:

•

  trytobegood 7:13 pm on November 16, 2012 Permalink | Reply

  Sensor Toys

  I had to use if statements to make the switch wires work, then I used switch statements for each of the interactions.

  Code after the jump.

  (More …)

  Rate this:

•

  lizbethc 7:01 pm on November 16, 2012 Permalink | Reply

  Switch case sound performance toy…work in progress

  So, I am completely confused by the wires to switch states…..What I have now grabs each case and will use the speaker and the LED in the exact state its in when I press a number….

   and here’s the code:



  int speakerPin= 7;
  int ledPin = 3;
  int sensorPin = 5;
  int potPin = 0;

  int sensorVal;
  int potVal;
  int LEDbrightness;
  int toneChange;
  int sensorTime;

  void setup()
  {
  pinMode(ledPin, OUTPUT);
  Serial.begin(9600);
  }

  void loop() {

  if ( Serial.available()) // Check to see if at least one character is available
  {
  char ch = Serial.read();
  switch(ch) {
  case ‘1’:

  //1st State controls LED dim level with the POT, and Speaker with the the PhotoCell
  sensorVal = analogRead(sensorPin);
  potVal = analogRead(potPin);

  LEDbrightness = map(potVal, 0, 1023, 0, 255);
  analogWrite(ledPin, LEDbrightness);
  analogWrite(ledPin, (potVal/4));
  tone(speakerPin, sensorVal*4);

  // Serial.print(sensorVal);
  // Serial.print(” “);
  // Serial.println(potVal);

  delay(20);

  break;
  case ‘2’:
  //*2nd State controls LED dim level with Photocell, and Speaker Tone with POT

  sensorVal = analogRead(sensorPin);
  potVal = analogRead(potPin);
  // sensorVal = 1023 – sensorVal;
  LEDbrightness = map(sensorVal, 0, 1023, 0, 255);
  analogWrite(ledPin, LEDbrightness);

  toneChange =map(potVal, 0, 1023, 0, 255);
  tone(speakerPin, toneChange);

  Serial.print(sensorVal);
  Serial.print(” “);
  Serial.println(potVal);

  delay(20);

  break;
  case ‘3’:
  //*3rd State controls LED blink-rate with the POT, Speaker Tone with POT, and Delay Rate (for both) with PhotoCell

  sensorTime = ((sensorVal)/10);

  Serial.println(“sensor reading = “);
  Serial.println(sensorVal); // the raw analog reading
  Serial.println(” “);
  Serial.println(“TIME reading = “);
  Serial.print(sensorTime);

  //Serial.print(” “);
  // Serial.println(potVal);

  sensorVal = analogRead(sensorPin);
  potVal = analogRead(potPin);

  LEDbrightness = map(potVal, 0, 1023, 0, 255);
  analogWrite(ledPin, LEDbrightness);
  // toneChange =map(potVal, 0, 1023, 0, 255);
  // tone(speakerPin, toneChange);
  //
  // Serial.print(sensorVal);
  // Serial.print(” “);
  // Serial.println(potVal);
  //
  // delay(sensorTime);
  delay(sensorTime);
  digitalWrite(ledPin, LOW);
  delay(sensorTime);

  break;
  case ‘4’:

  // *4rd State controls LED blink-rate with the PhotoCell, and Speaker tone with PhotoCell.

  sensorTime = ((sensorVal)/10);
  sensorVal = analogRead(sensorPin);

  analogWrite(ledPin, (potVal/4));
  tone(speakerPin, sensorVal*4);

  digitalWrite(ledPin,HIGH);
  delay(sensorTime);
  digitalWrite(ledPin, LOW);
  delay(sensorTime);
  break;

  default :
  Serial.print(ch);
  Serial.println(” was received but not expected”);
  break;

  }//switch
  } //serial available
  } //void loop
  int RCtime(int RCpin) {
  int reading=0; //startwith0
  // set the pin to an output and pull to LOW (ground)
  pinMode(RCpin, OUTPUT);
  digitalWrite(RCpin, LOW);
  // Now set the pin to an input and…
  pinMode(RCpin, INPUT);
  while (digitalRead(RCpin) == LOW) { // count how long it takes to rise up to HIGH
  reading++; // increment to keep track of time
  if (reading == 30000) {
  // if we got this far, the resistance is so high // its likely that nothing is connected!
  break; // leave the loop
  } }
  // OK either we maxed out at 30000 or hopefully got a reading, return the count
  return reading; }



  Rate this:

•

  tiamtaheri 6:22 pm on November 16, 2012 Permalink | Reply

  [assignment_11/16]

  Here is the case statement code I wrote, unfortunately I get an error, when I try to upload. But all the 4 states work, if I put them in separate sketches:

  int potentiomerPin=0;
  int photocellPin=1;
  int photocellReading;
  int ledPin=10;
  int ledBrightness;
  int speakerPin=12;
  int speakerFrequency;
  int delayPeriod;
  void setup() {
  Serial.begin(9600);
  pinMode(ledPin, OUTPUT);
  }
  void loop(){
  if(Serial.available()) {
  char ch=Serial.read();
  switch(ch);
  }

  case ‘1’:
  number1();
  break;
  case ‘2’:
  number2();
  break;

  case ‘3’:
  number3();
  break;

  case’4′:
  number4();
  break;

  default:
  Serial.print(ch);
  Serial.println(” was received but not expected”);
  break;

  }
  }

  }

  void number1 () {
  int potsensorValue=analogRead(A0);
  photocellReading=analogRead(A1);
  Serial.print(“Potentiometervalue: “);
  Serial.println(potsensorValue);

  Serial.print(“Photocellvalue: “);
  Serial.println(photocellReading);

  delay(1);

  ledBrightness=map(potsensorValue,0,1023,0,255);
  analogWrite(ledPin, ledBrightness);
  speakerFrequency=map(photocellReading, 0,1023,0,255);
  tone(speakerPin,speakerFrequency*10);
  delay(50);
  noTone(speakerPin);
  delay(50);
  }

  void number2 () {
  int potsensorValue=analogRead(A0);
  photocellReading=analogRead(A1);
  Serial.print(“Potentiometervalue: “);
  Serial.println(potsensorValue);

  Serial.print(“Photocellvalue: “);
  Serial.println(photocellReading);

  delay(1);
  photocellReading=1023-photocellReading;
  ledBrightness=map(photocellReading,0,1023,0,255);
  analogWrite(ledPin, ledBrightness);
  speakerFrequency=map(potsensorValue, 0,1023,0,255);
  tone(speakerPin,speakerFrequency*10);
  delay(50);
  noTone(speakerPin);
  delay(50);
  }

  void number3(){
  int potsensorValue=analogRead(A0);
  photocellReading=analogRead(A1);
  Serial.print(“Potentiometervalue: “);
  Serial.println(potsensorValue);

  Serial.print(“Photocellvalue: “);
  Serial.println(photocellReading);

  delay(1);
  delayPeriod=map(photocellReading,0,1023,0,255);

  ledBrightness=map(potsensorValue,0,1023,0,255);
  digitalWrite(ledPin, HIGH);
  delay(ledBrightness);
  digitalWrite(ledPin,LOW);
  delay(ledBrightness);

  speakerFrequency=map(potsensorValue, 0,1023,0,255);
  tone(speakerPin,speakerFrequency*10);
  delay(delayPeriod);
  noTone(speakerPin);
  delay(delayPeriod);

  }

  void number4 () {
  int potsensorValue=analogRead(A0);
  photocellReading=analogRead(A1);
  Serial.print(“Potentiometervalue: “);
  Serial.println(potsensorValue);

  Serial.print(“Photocellvalue: “);
  Serial.println(photocellReading);

  delay(1);
  delayPeriod=map(photocellReading,0,1023,0,255);

  ledBrightness=map(potsensorValue,0,1023,0,255);
  digitalWrite(ledPin, HIGH);
  delay(delayPeriod);
  digitalWrite(ledPin,LOW);
  delay(delayPeriod);

  speakerFrequency=map(potsensorValue, 0,1023,0,255);
  tone(speakerPin,speakerFrequency*10);
  delay(ledBrightness);
  noTone(speakerPin);
  delay(ledBrightness);
  }



  Rate this:

•

  YiNing 6:17 pm on November 16, 2012 Permalink | Reply

  Assignment: sound/LED controls

  code here:

  int state;
  void setup(){
    pinMode(9, OUTPUT);
    pinMode(2, OUTPUT);
    pinMode(12, INPUT);
    state = 1;
    Serial.begin(9600);
  }

  void loop(){
    int pot = analogRead(A3);
    int photo = analogRead(A1);
    int potLight = map(pot, 0, 1024, 0, 255);
    int photoLight = map(photo, 0, 1024, 0, 255);
    int photoSpeaker = map(photo, 0, 1024, 500, 80);
    int potSpeaker = map(pot, 0, 1024, 80, 500);
    int potDelay = map(pot, 0, 1024, 0, 500);
    int photoDelay = map(photo, 0, 1024, 0, 500);

    boolean btnRead = debouncefunction(12);
    if(btnRead == true){
     btnRead = 0;
     delay(200);
     state += 1;
       if(state > 4){
         state = 1;
       }
    }

    if(state == 1){
      //state one pot->LED, photosensor->speaker
      analogWrite(9, potLight);
      tone(2, photoSpeaker);
    }

    if(state == 2){
      //photoell->LED, pot->speaker
      analogWrite(9, photoLight);
      tone(2, potSpeaker);
    }

    if(state == 3){
      // photocell->LED/speaker, pot->speaker tone and led blink rate
      tone(2, potSpeaker);
      delay(photoDelay);
      noTone(2);
      delay(photoDelay);
      analogWrite(9, photoLight);
      delay(potDelay);
      analogWrite(9, 0);
      delay(potDelay);
    }

    if(state == 4){
      analogWrite(9, photoLight);
      delay(photoDelay);
      analogWrite(9, 0);
      tone(2, potSpeaker);
      delay(photoDelay);
    }

    Serial.println(state);
  }

  int debouncedelay = 500;
  boolean debouncefunction(int pin){
    boolean state;
    boolean previousState;

    previousState = digitalRead(pin);
    for(int counter =0; counter > debouncedelay; counter++){
      delay(1);
      state = digitalRead(pin); //readpin
        if(state != previousState)
        {counter = 0;
        previousState = state;
        }
    }
    return state;
  }


  Rate this:

•

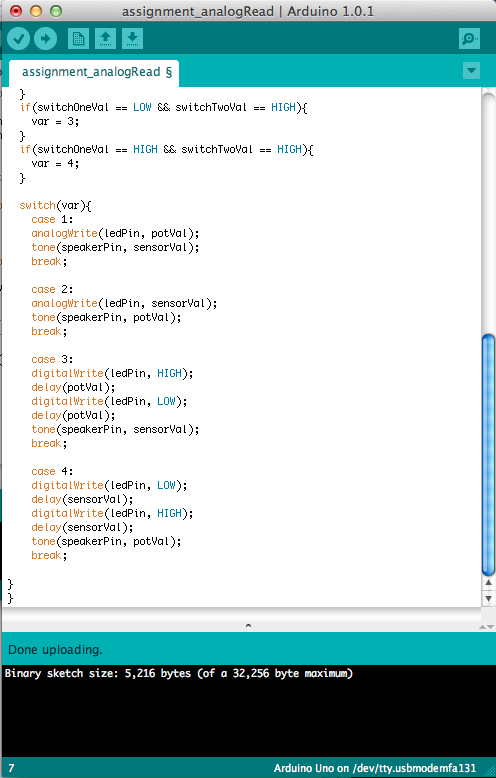

  Amp 3:48 am on November 16, 2012 Permalink | Reply

  analogRead homework







  It’s a bit messy but the code works with cases as well.
