MIDI Room Tones
So my whole PHP Xbee thing ended up crashing my computer, again! So square one (Well, also tried the ethernet shield but couldn’t get it running either, server side).
I tried something very different! I’d been reading a John Cage biography over break and it inspired me to create a MIDI instrument that makes music in response to what is going on in the room. It uses a temperature sensor, an electret microphone, and a photoresistor. It passes the values to the arduino, which then maps them to MIDI values between 0 and 127 setting tone and velocity of notes played, as well as turning notes on and off. Temperature sets velocity. Light sets tone. Audio interrupts the light tone with a louder note of its own, with tone being set by volume – louder being higher. Right now this is all going in as one MIDI instrument, but it should be possible to run two versions of the processing sketch that is interpolating between the serial values and the MIDI input on the computer (and this is also only being used to make the USB serial port a MIDI in – putting a MIDI output on the arduino would make this unnecessary, as would running off a MIDI breakout box). I’ve been playing around with MIDI a lot and have found this to be a pretty good work flow for using the arduino as a midi controller.

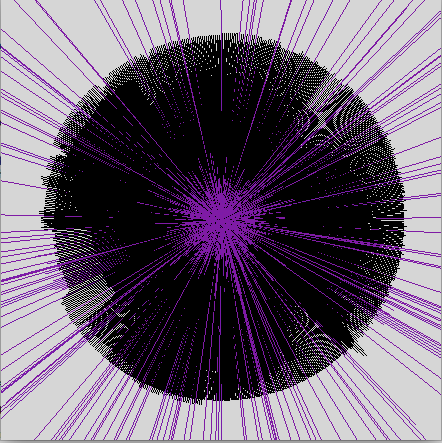

I added on a visualization, though I am having trouble getting it to run simultaneous with the music software. But it works well continuously and runs indefinitely.
The MIDI here is being collected both as Serial Values in a txt dump and as the actual MIDI files through Garageband, which recorded fine for hours if using only the software instrument.
So perhaps this wasn’t really a visualization at all, but more of an auralization, as one can experience “Watching Sports Center” or “Getting Ready in the Morning” with no real trace of the people passing through that room, or the noise they made, but instead is simply the machine’s data driven reinterpretation of their work.
Here is the arduino code for the instrument:
#define LIGHT_SENSOR 1
#define TEMP_SENSOR 0
#define AUDIO_SENSOR 2
#define SENSOR_NUM 3
//Setup Sensors
int photoRead = 0;
int tempRead = 0;
int audioRead = 0;
float tempC;
float tempF;
float tempK;
float lightVal;
float audioVal;
float tempVal;
int tempSmooth;
int lightSmooth;
int audioSmooth;
void setup() {
Serial.begin(56700);
initSmoothing();
}
void loop() {
photoRead = analogRead(LIGHT_SENSOR);
tempRead = analogRead(TEMP_SENSOR);
audioRead = analogRead(AUDIO_SENSOR);
lightVal = map(photoRead, 0, 1023, 127, 0 );
tempK = ((tempRead/1023.0)*5.0)*100;
tempC = tempK-273.15;
tempF = (tempC *1.8) +32;
tempVal = map(tempF, 55, 85, 0, 127);
audioVal = map(audioRead, 300, 800, 0, 127);
tempSmooth = int(returnSmoothing(tempVal, A0 ));
lightSmooth = int(returnSmoothing(lightVal , A1 ));
audioSmooth = int(returnSmoothing(audioVal, A2));
//Serial.println(audioSmooth);
if(audioSmooth>30){
MIDI_TX(144,audioSmooth,127);
delay(160);
MIDI_TX(128, audioSmooth, 127);
}
MIDI_TX(144,lightSmooth,tempSmooth);
delay(100);
//debug
//Serial.println(tempF);
}
void MIDI_TX(unsigned char MESSAGE, unsigned char PITCH, unsigned char VELOCITY)
{
Serial.print(MESSAGE);
Serial.print(PITCH);
Serial.print(VELOCITY);
}
And here is the Processing app to convert MIDI:
// *****************************************************************************************************************
// * *
// * SpikenzieLabs.com *
// * *
// * SERIAL <-> MIDI Converter *
// * *
// * *
// *****************************************************************************************************************
//
// BY: MARK DEMERS
// Jan. 2010
// VERSION: 2D
//
// DESCRIPTION:
// Use to convert serial data into MIDI.
//
// The default serial configuration is 57600 bps 8N1
//
// FUNCTION:
// A. Connect serial device onto computer.
// B. Create virtual Midi port if required. (Mac OS use Audio Midi Setup -> Add IAC Port -> click "online")
// C. Launch converter.
// D. Select serial port
// E. Select Midi Input Port
// F. Select Midi Output Port
// G. Let the applet run in the background, RX and TX will flash with serial data
//
// Changes for version D:
// uses themidibus v4 vs v3
// PROGRAM:
// Coded in Processing 1.0.9
// Used "themidibus" Library by Severin Smith. URL: http://www.smallbutdigital.com/themidibus.php
// UPDATE:
// On OS X 10.5.8 > (with java update 6) mmj is no longer required and will cause a bug, please de-install it !
// Use on Mac OS 10.4.8 or greater requires "mmj" a java Midi subsystem. URL: http://www.humatic.de/htools/mmj.htm
//
// LEGAL:
// This code is provided as is. No guaranties or warranties are given in any form. It is your responsibilty to
// determine this codes suitability for your application.
import themidibus.*;
import processing.serial.*;
MidiBus myBus; // The MidiBus
Serial port; // Create object from Serial class
//Serial port2;
String ports[] = Serial.list();
//String midiport[][] = myBus.availableInputs();
String midiInputs[] = myBus.availableInputs(); // <- Doesn't work without this line ????
String StatusText = "";
String MainTextLineOne = "";
String MainTextLineTwo = "";
String MainTextLineThree = "";
String MainTextLineFour = "";
String[] available_outputs = MidiBus.availableOutputs(); //Returns an array of available output devices
String[] available_inputs = MidiBus.availableInputs(); //Returns an array of available input devices
String Letters = "ABCDEFGHIJKLMNOPQRSTUVWXYZ";
String LettersLower = "abcdefghijklmnopqrstuvwxyz";
int Bauds[] = {9600, 19200, 31250, 38400, 57600, 115200};
int[] val = new int[3];
int[] buffer = new int[16];
int state = 1 ;
int SPortCount = 0;
int SerialPortID = 0;
int SerialPortBaudRate = 0;
int MPortCount = 0;
int i = 0;
int channel = 0;
int midistatus = 128;
int pitch = 64;
int velocity = 127;
int midi_inputPORT = 0;
int midi_outputPORT =0;
float RX_flash = 0;
color RX_flashcolor = 0;
color TX_flashcolor = 0;
float TX_flash = 0;
int line_space = 0;
int lineSpacing = 15;
int number = 0;
int value = 90;
int keyselection = 99;
boolean SerPortFlag = false;
boolean RX_ERROR_FLAG = false;
color flashcolor = color(00, 255, 00);
color flashOFFcolor = color(204, 204, 204);
void setup() {
size(380, 440);
textFont(createFont("Arial", 12));
frameRate(25);
background(255);
// MidiBus.list(); // List all available Midi devices on STDOUT. This will show each device's index and name.
}
void draw() {
switch(state)
{
case 0: // Running
if((millis() - RX_flash) > 50)
{
RX_flashcolor = flashOFFcolor;
}
fill(RX_flashcolor);
noStroke();
rect(width-30, height-34, 8, 8);
TX_activity(false);
break;
case 1: // Select serial Port
updatedisplay();
selectSerialport();
break;
case 2: // Select serial Speed
updatedisplay();
selectSerialBoadRate();
break;
case 3: // Select MIDI INPUT Port
updatedisplay();
selectMidi_IN_port();
break;
case 4: // Select MIDI OUTPUT Port
updatedisplay();
selectMidi_OUT_port();
break;
}
}
void TX_activity(boolean SerialTX) // Used to flash TX indicator
{
if(SerialTX){
TX_flashcolor = flashcolor;
TX_flash = millis();
}
else
{
if((millis() - TX_flash) > 100){
TX_flashcolor = flashOFFcolor;
}
}
fill(TX_flashcolor);
noStroke();
rect(width-30, height-21, 8, 8);
}
void serialEvent(Serial port)
{
int i = 0;
for(i=0; i < 3; i = i +1)
{
int inByte = port.read();
val[i] = inByte;
if(i==0 && inByte < 128) // Verify 1st Byte is Status byte
{
i=3;
}
}
if(val[0] >= 128)
{
myBus.sendMessage(val[0], val[1], val[2]);
RX_flashcolor = flashcolor;
}
else
{
RX_flashcolor = color(255,0,0); // ERROR ! FLash
}
RX_flash = millis();
}
void noteOn(int channel, int pitch, int velocity) // Receive a noteOn
{
int midistatus = 0;
int message = 144;
midistatus = message | channel;
// println("Note On: "+midistatus+"-"+pitch+"-"+velocity); // Un-comment to debug
TX_activity(true);
port.write(midistatus);
port.write(pitch);
port.write(velocity);
}
void noteOff(int channel, int pitch, int velocity) // Receive a noteOff
{
int midistatus = 0;
int message = 128;
midistatus = message | channel;
// println("Note Off: "+midistatus+"-"+pitch+"-"+velocity); // Un-comment to debug
TX_activity(true);
port.write(midistatus);
port.write(pitch);
port.write(velocity);
}
void controllerChange(int channel, int number, int value) // Receive a controllerChange
{
int midistatus = 0;
int message = 176;
midistatus = message | channel;
// println("Controller Change: "+midistatus+"-"+number+"-"+value); // Un-comment to debug
TX_activity(true);
port.write(midistatus);
port.write(number);
port.write(value);
}
void selectSerialport()
{
StatusText = "Press the number key that matches your Arduino's serial Port:";
SPortCount = Serial.list().length;
if(SPortCount==0)
{
StatusText = "ERROR: No serial Ports avaliable";
}
else
{
fill(0);
line_space = 0;
for(i=0; i <Serial.list().length; i=i+1)
{
text("Port ["+Letters.charAt(i)+"] : "+ports[i], 15, 80+(line_space), 600, 350);
line_space= line_space+lineSpacing;
}
}
}
void selectSerialBoadRate()
{
StatusText = "Press the letter key that matches your serial port baud rate:";
fill(0);
line_space = 0;
for(i=0; i < 6; i=i+1)
{
text("Baud rate ["+Letters.charAt(i)+"] : " + Bauds[i] + " bps ", 15, 80+(line_space), 600, 350);
line_space= line_space+lineSpacing;
}
}
void selectMidi_IN_port()
{
StatusText = "Press the number key that matches MIDI INPUT Port:";
// MPortCount = midiport.length;
// MPortCount = midiInputs.length;
MPortCount = available_inputs.length;
if(MPortCount==0)
{
StatusText = "ERROR: No MIDI Ports avaliable";
}
else
{
fill(0);
line_space = 0;
// for(i=0; i <midiport.length; i=i+1)
for(i=0; i <available_inputs.length; i=i+1)
{
// if(midiport[i][1]=="Input" || midiport[i][1]=="Input/Output")
// if(midiInputs[i]=="Input" || midiInputs[i]=="Input/Output")
// {
// text("MIDI Port ["+Letters.charAt(i)+"] : "+midiport[i][0]+" - "+midiport[i][1], 15, 80+(line_space), 600, 350);
text("MIDI Port ["+Letters.charAt(i)+"] : "+available_inputs[i], 15, 80+(line_space), 600, 350);
line_space= line_space+lineSpacing;
// }
}
}
}
void selectMidi_OUT_port()
{
StatusText = "Press the number key that matches MIDI OUTPUT Port:";
// MPortCount = midiport.length;
// MPortCount = attachedOutputs.length();
// String[] available_outputs = MidiBus.availableOutputs(); //Returns an array of available output devices
MPortCount = available_outputs.length;
if(MPortCount==0)
{
StatusText = "ERROR: No MIDI Ports avaliable";
}
else
{
fill(0);
line_space = 0;
// for(i=0; i <midiport.length; i=i+1)
for(i=0; i < available_outputs.length; i=i+1)
{
// if(midiport[i][1]=="Output" || midiport[i][1]=="Input/Output")
// {
text("MIDI Port ["+Letters.charAt(i)+"] : "+available_outputs[i], 15, 80+(line_space), 600, 350);
line_space= line_space+lineSpacing;
// }
}
}
}
void updatedisplay()
{
background(255);
int fadecolor = 220;
for (int i = 0; i < 60; i = i+1) // Top area
{
stroke(0, fadecolor, 255);
line(0, i, width, i);
fadecolor = fadecolor -2;
}
fadecolor=128;
for (int i = height-40; i < height; i = i+1) // Bottom area
{
stroke(0, fadecolor, 255);
line(0, i, width, i);
fadecolor = fadecolor + 3;
}
fadecolor=50;
for (int i = height-60; i < height-40; i = i+1) // Upper-Bottom area
{
stroke(0, fadecolor, 255);
line(0, i, width, i);
fadecolor = fadecolor + 3;
}
fill(255); // Status Title
stroke(0);
text("Status:", 15, height - 45);
fill(0); // Status Text
stroke(50);
text(StatusText, 15, height-25, 600, 350);
if(state == 0)
{
text(MainTextLineOne, 15, 100);
text(MainTextLineTwo, 15, 120);
text(MainTextLineThree, 15, 140);
text(MainTextLineFour, 15, 160);
text("Serial RX", width-85, height-25);
text("Serial TX", width-85, height-12);
// RX Flash square
rect(width-30, height-34, 8, 8);
// TX Flash square
rect(width-30, height-21, 8, 8);
}
textAlign(CENTER);
fill(255);
textSize(12);
text("Serial <> MIDI Converter", (width/2)-(300/2),10,300,20);
textSize(12);
text("By Mark Demers - SpikenzieLabs.com", (width/2)-(300/2),35,300,45);
textAlign(LEFT);
textSize(12);
}
void keyPressed() {
decodeLetter();
if ((keyselection != 99) || (keyselection != -1))
{
switch(state)
{
case 0: // Running
break;
case 1: // Serial Select
if((keyselection) <= (Serial.list().length-1))
{
state=2;
StatusText = ("You are using serial port ["+(keyselection)+"] : "+ports[keyselection]);
SerialPortID = keyselection;
// port = new Serial(this,ports[key-48], 57600); // Moved to last step
// port.buffer(3);
// port.clear();
MainTextLineOne = ("Serial port ["+(keyselection)+"] : "+ports[keyselection]);
}
break;
case 2: // Serial Speed Select
if((keyselection) <= 5)
{
state=3;
// StatusText = ("You are using serial port ["+(keyselection)+"] : "+ports[keyselection]);
SerialPortBaudRate = keyselection;
MainTextLineTwo = ("Serial Baud Rate ["+(keyselection)+"] : "+Bauds[keyselection]+ " bps ");
}
break;
case 3: // midi Input Select
if((keyselection) <= (available_inputs.length-1))
{
state=4;
StatusText = ("You are using MIDI INPUT port ["+(keyselection)+"] : "+available_inputs[keyselection]);
midi_inputPORT = (keyselection);
MainTextLineThree = ("MIDI Input port ["+(keyselection)+"] : "+available_inputs[keyselection]);
delay(250);
}
break;
case 4: // Midi OUTput select
if((keyselection) <= (available_outputs.length-1))
{
state=0;
StatusText = ("Converter is running");
midi_outputPORT = (keyselection);
// Parent In Out
// | | |
myBus = new MidiBus(this, midi_inputPORT, midi_outputPORT);
MainTextLineFour = ("MIDI Output port ["+(keyselection)+"] : "+available_outputs[keyselection]);
port = new Serial(this,ports[SerialPortID], Bauds[SerialPortBaudRate]);
// port = new Serial(this,ports[SerialPortID], 115200); // was 57600 115200
port.buffer(3);
port.clear();
}
updatedisplay();
break;
}
}
}
void decodeLetter()
{
keyselection = 99;
if((key > 64) && (key < 91))
{
keyselection = Letters.indexOf(key);
} else if ((key > 96) && (key < 123))
{
keyselection = LettersLower.indexOf(key);
}
}
void stop()
{
port.stop();
myBus.close();
}
And finally, the code for my visualizer in processing:
import processing.serial.*;
Serial port;
//float data;
int data[]= new int[3];
float angle;
float radius[]=new float[3];
void setup(){
size(440,440);
println(Serial.list());
String arduinoPort = Serial.list()[0];
port= new Serial(this, arduinoPort, 9600);
}
void draw(){
if(port.available()>0){
for(int i=0;i<3;i++){
data[i]=port.read();
}
}
radius[0] = map(data[0],0,127,0,height*.75);
radius[1] = map(data[1],0,127,0,height*.45);
radius[2] = map(data[2],40,190,0,255);
int middleX = width/2;
int middleY = height/2;
float x = middleX + cos(angle) *radius[0];
float y = middleY + sin(angle) *radius[0];
stroke(0);
line(middleX, middleY, x, y);
x=middleX+cos(angle)*radius[1];
y=middleY+sin(angle)*radius[1];
stroke(radius[2],0,255-radius[2]);
line(middleX,middleY,x,y);
angle+=0.01;
delay(200);
}
Making Toys
makingtoys 1:21 pm on March 23, 2011 Permalink |
You made your apartment an installation work. Very nice, I did not see this complexity in class during presentation. You are showing many valuable concepts here functioning for the first confusing time.
