  Franci Castelli 2:51 pm on October 12, 2012 Permalink | Reply

  Simon Enclosures

  I started looking around for possible enclosures and i found some boxes that might work well for the purpose.

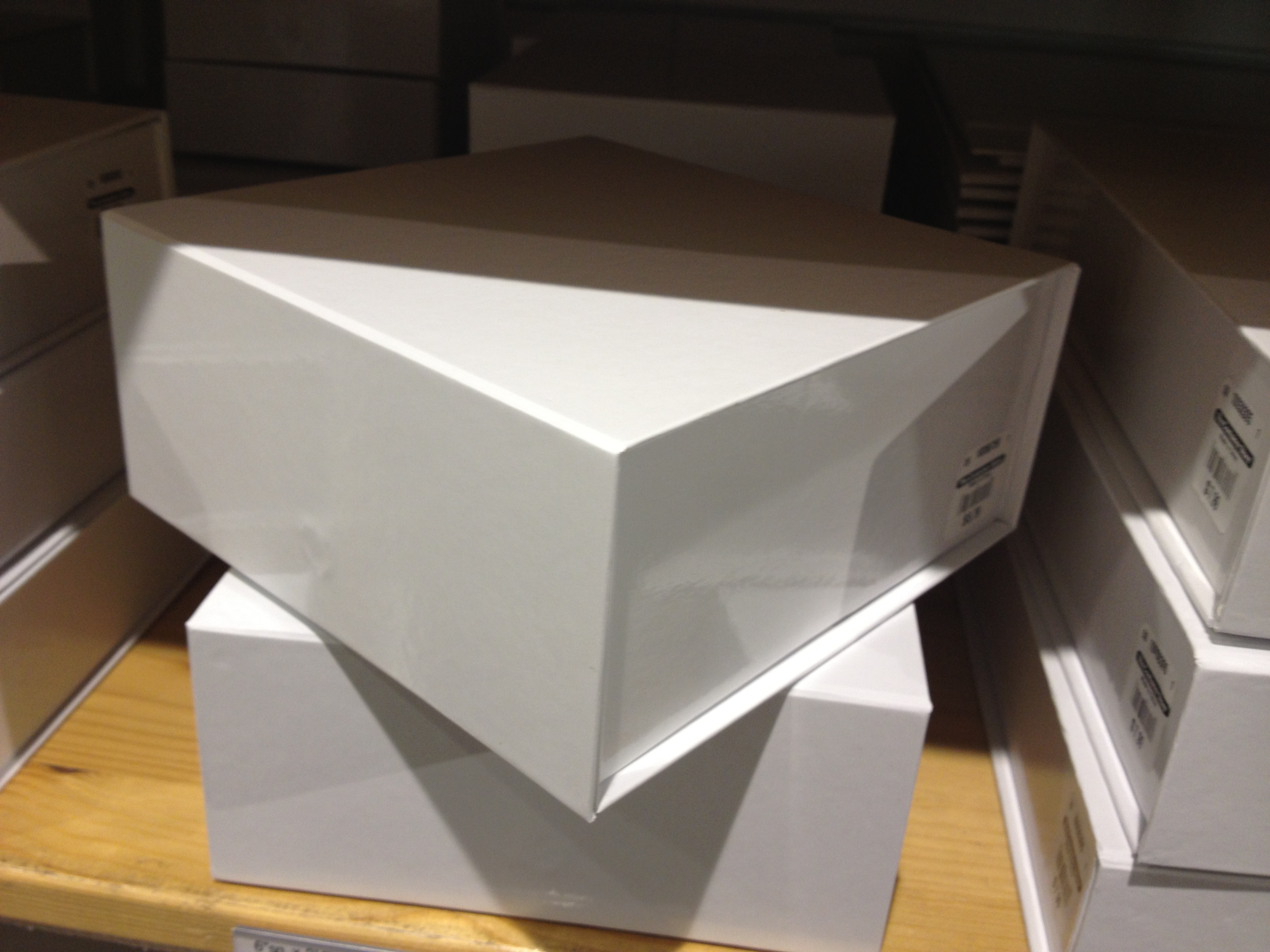

  I liked in particular a box in heavy laminated cardbord with a magnetic top opening, which might lead to an interesting configuration of the buttons/lights, and is also structured enough to resist some engagement during the game.

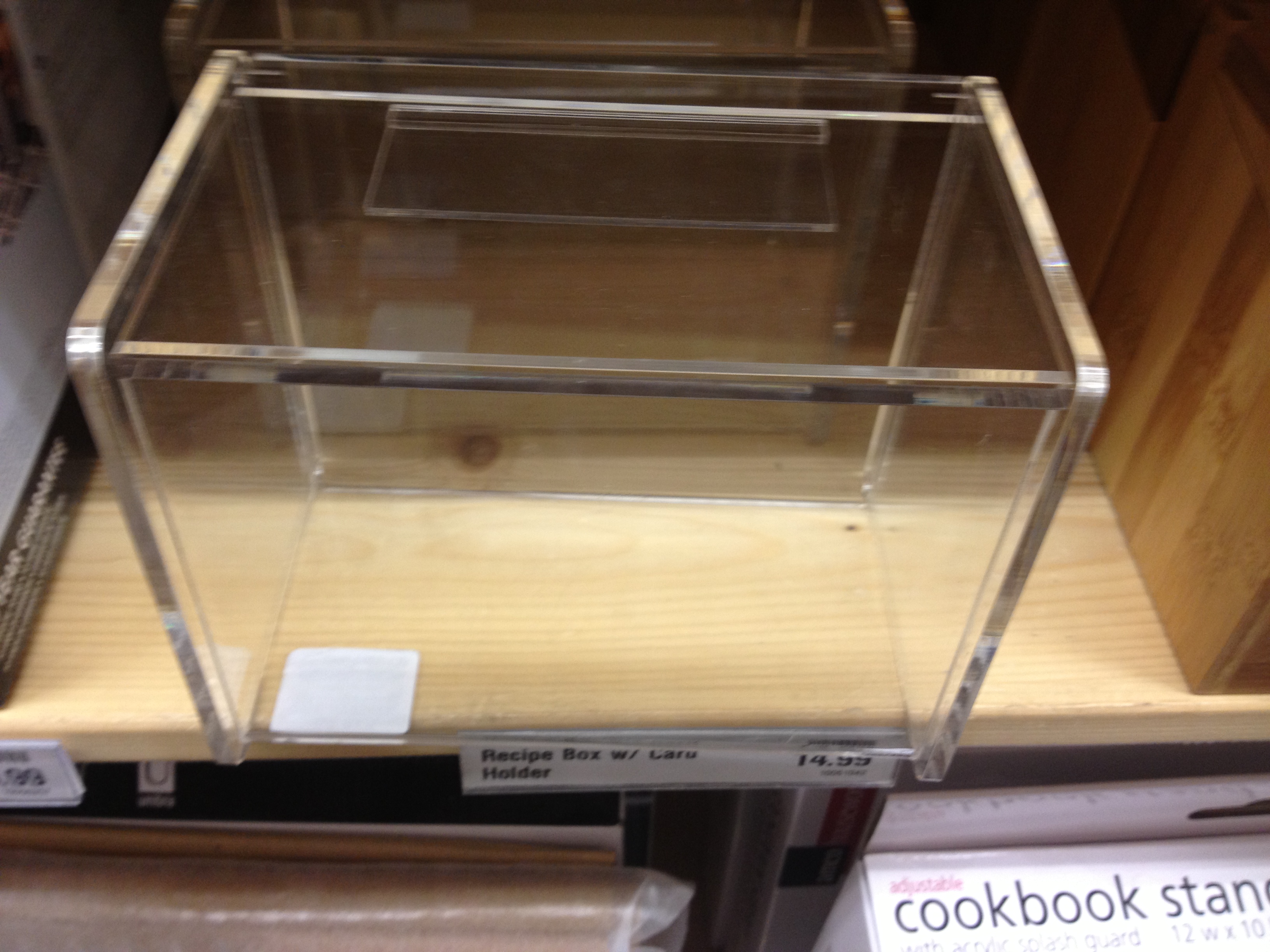

  Also i found a nice plexi box. In this one i like the material, the transparency, that could show maybe the guts of the project but still having everything tidy and gaming proof. Also it might allow to have the lights inside the box and the buttons on the outside, or other solutions.





  But thinking about it, I would really like if possible to build my own enclosure, allowing more freedom in expressing the memory game concept od simon says.

  I thought for example it could be a soft toy, and i was imagining something like an octopus, for legs are the light pattern, and the other four the controls to replicate and play



  Another option that i’d like to investigate if possible to realize is to take simon and make it a bit more physical, having a button for each hand and for each foot and replicating the light pattern with them.



  Just a few thoughts, i think more ideas will keep flowing

  Rate this:


  Reply Cancel reply

  Required fields are marked *

  Name *

  Email *

  Website

  Notify me of new comments via email.

  Notify me of new posts via email.

  Δ

•

  sussesj 2:50 pm on October 12, 2012 Permalink | Reply

  Simon says

  So my initial though on the simon says game, was a hand hold machine, controled by your fingers.
  For that I went searching for thing to hold thing, and found this silicone handle(apparently it’s for warm things.
  So I though that would be great since the silicone would allow the flexibility, and the light from the LED’s can shine through the white silicone.



  My second Idea was a box, controlled by light sensors, so in order to do what Simon said, you would have to turn the box – having it turnr down, would switch of the LED.

  This way would allow interaction and turning trowing the simons says around. I was thinking to put paper for each side.







  Rate this:

•

  carolkozak 1:13 pm on October 12, 2012 Permalink | Reply

  Simon 1

  Three Ideas



  Rate this:

•

  itsjennkaye 7:32 am on October 12, 2012 Permalink | Reply

  Simon Sketches + Tone Code

  I have 3 ideas for ways to modify store-bought enclosures for my Simon Says game:

  This slideshow requires JavaScript.

  Download my homework ›

  Rate this:

•

  YiNing 5:27 am on October 12, 2012 Permalink | Reply

  My Simon style games ideas, enclosures ideas, and sound code.

  This are my thee Simon ideas:



  for the enclosure for the first idea, I am thinking about attaching some parts onto the tip of the drum sticks





  for the second idea, I’m thinking about a simple form like below:





  for the third idea, should be simple, a Frisbee will do.



  download my sound code here:
  MY CODE

  Rate this:

•

  tiamtaheri 4:50 am on October 12, 2012 Permalink | Reply

  sounds

  Startup:

  Version 1:

  int speakerPin=8;

  void setup(){
  pinMode(8,OUTPUT);

  }
  void loop (){
  for( int y=0; y<3000; y+=2) {
  tone(speakerPin,random(10,y));
  delay(4);

  }

  }



  Version 2 (favorite):

  int speakerPin=8;

  void setup(){
  pinMode(8,OUTPUT);

  }
  void loop (){
  for( int y=0; y<3000; y+=2) {
  tone(speakerPin,random(0,y));
  delay(4);

  }

  }



  Version 3:



  int speakerPin=8;

  void setup(){
  pinMode(8,OUTPUT);

  }
  void loop (){
  for( int y=0; y<3000; y+=2) {
  tone(speakerPin,random(1000,y),6);
  }

  }





  You are wrong-sounds:

  Version 1:

  1. include “pitches.h”

  int melody [] = {NOTE_A1,NOTE_B0,NOTE_D2};
  int noteDurations [] = {1};

  void setup() {

  }

  void loop() {
  for (int thisNote = 0; thisNote < 3; thisNote++) {
  int noteDuration = 1000/noteDurations[thisNote];
  tone(8, melody[thisNote],noteDuration);
  int pauseBetweenNotes = noteDuration * 1.30;
  delay(pauseBetweenNotes);
  noTone(8);
  }

  }



  Version 2:

  1. include “pitches.h”

  int melody [] = {NOTE_F1,NOTE_CS5,NOTE_CS8 };
  int noteDurations [] = {1};

  void setup() {

  }

  void loop() {
  for (int thisNote = 0; thisNote < 3; thisNote++) {
  int noteDuration = 1000/noteDurations[thisNote];
  tone(8, melody[thisNote],noteDuration);
  int pauseBetweenNotes = noteDuration * 1.30;
  delay(pauseBetweenNotes);
  noTone(8);
  }

  }



  Version 3:

  1. include “pitches.h”

  int melody [] = {NOTE_GS7,NOTE_CS7,NOTE_FS4 };
  int noteDurations [] = {1};

  void setup() {

  }

  void loop() {
  for (int thisNote = 0; thisNote < 3; thisNote++) {
  int noteDuration = 1000/noteDurations[thisNote];
  tone(8, melody[thisNote],noteDuration);
  int pauseBetweenNotes = noteDuration * 1.30;
  delay(pauseBetweenNotes);
  noTone(8);
  }

  }

















  Rate this:

•

  lizbethc 4:24 am on October 12, 2012 Permalink | Reply

  Simon Says enclosure ideas

  I went and looked around at possible enclosures for the simon game.



  I found some plastic and wooden boxes, and then later thought about halloween and beer.

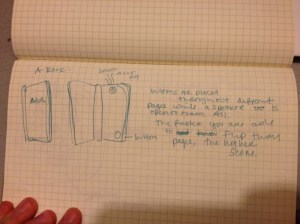

  Here are some of my sketches:









  Having trouble uploading the arduino file for sounds…?

  Rate this:

•

  JeannetteSubero 2:35 am on October 12, 2012 Permalink | Reply

  If you still need inspiration!

  http://www.mariopiano.com/mario-sheet-music-overworld-main-theme.html

  Rate this:

•

  tiamtaheri 2:08 am on October 12, 2012 Permalink | Reply

  simon says ideas

  Here are my 3 enclosure ideas:

  1. for the first one I tried to keep it simple and clean. I tried to have some kind of symmetry, but with the switch and battery-pack it’s going to be tricky



  2. the main idea is mimesis: some kind of distorted geometrical form that gets close to the shape of a stone

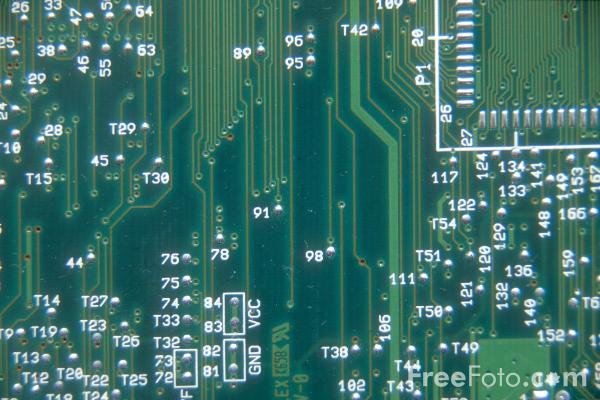

  3. to embrace the nerd-ness: taking random circuits to build an enclosure for simon



  I am still working on the code.













  Inspiration:

































  Rate this:

•

  JeannetteSubero 1:11 am on October 12, 2012 Permalink | Reply

  Beat Simon

  So my ideas all revolve on beating Simon… literally.

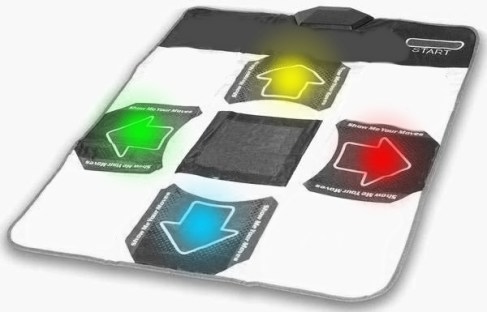

  Step-on Simon

  Based on the dance mats like Dance Dance Revolution. I propose the Step-On Simon game. I found a guy that made a mat for about 8 dollars, just using wood, ducktape and switches (http://www.tomtilley.net/projects/ddr-pad/). So I think it’s pretty doable!

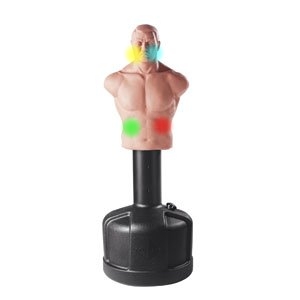

  Punch Simon

  A boxing training/memory game. It would need an upper body mannequin (made of foam, cause the Body Opponent Bag is too expensive!!!), and a sturdy base. Also it would have to use some sort of soft circuit sensors. It would illuminate where you have to punch Simon.

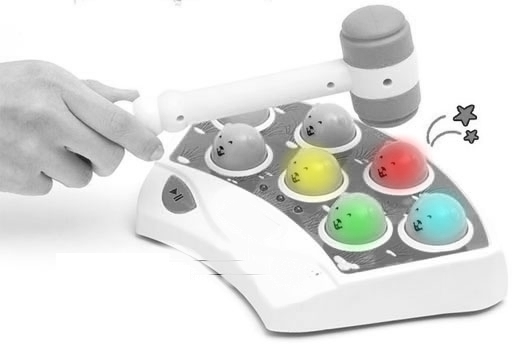

  Whack Simon

  Based on the whac-a-mole arcade game, you would smack with a toy hammer the sequence that the Simon game provides. The enclosure I was thinking of using a wood box, drill holes in it, and put small bouncy balls (or other type of balls) with switches.



  Code in Github: https://github.com/jeannettesubero/PComp-Codes/tree/master/SimonGameSounds . Got some sweet melodies with the help of my brother (who’s an awesome guitarist).

  Rate this:

•

  Amp 10:28 pm on October 11, 2012 Permalink | Reply

  I want to make SimonBot!

  The idea is to have two opponents.  The robot will turn toward the person who’s winning the game.  However, things gets more confusing if you’re winning because the robot can blinks different color from it’s eyes too.  I’m planning on using the 3d printer.  Here are some prototype renders from 3ds max.

















  Rate this:

•

  trytobegood 10:20 pm on October 11, 2012 Permalink | Reply

  Simon Says brainstorm sketches



  Products:



  Encasing for my first blue sky idea.



  Science-experiment plastic tubing.


  Anti-Static Conductive Gloves

  Rate this:

•

  salome 10:12 pm on October 11, 2012 Permalink | Reply

  Vision and Enclosure

  VISION

  ENCLOSURES



  Gallery pedestal. I went back to that first Simon Says commercial we watched on the schoolyard where the game felt like the player’s opponent. Installing the game at the top of some sort of pillar would make Simon and the player meet like equal rivals because of the height match.



  Circle Wood Box. I grew up with a lot of wood toys, so I’ve been thinking about bringing in that craft feel.



  Plexiglass casing. There’s something about being able to see the insides of your electronics.

  Rate this:

•

  salome 6:28 pm on October 10, 2012 Permalink | Reply

  Printing Weapons

  This is what I was talking about in class last week.

  Disruptions: With a 3-D Printer, Building a Gun With the Push of a Button

  “Hit print, walk away, and a few hours later, you have a firearm. There are no background checks. No age limits. No serial numbers etched on the barrel or sales receipts to track the gun.”

  Thanks Fei for the article!

  Rate this:

•

  salome 6:21 pm on October 10, 2012 Permalink | Reply

  Bio and Favorite Toy

  A little late putting my bio up here.

  My name is Salome Asega. I was born and raised in Las Vegas. I did my undergrad here in New York at NYU where I focused in curatorial and archival work. Came into DT thinking I’d find interesting ways to preserve archival material through online platforms and now things are slightly changing the more I learn about Arduino and physical computing.

  Favorite toy/activity:

  POGO





  Rate this:

•

  sussesj 9:29 pm on October 6, 2012 Permalink | Reply

  My knight Rider with sound https vimeo com…

  My knight Rider with sound:)

  https://vimeo.com/50901435



  Rate this:

•

  Yury Gitman 7:39 pm on October 5, 2012 Permalink | Reply

  Reading and some Code for next class

  Arduino Cookbook:

  Tone and Random Numbers Topics, Read and Do code in:

  Tone: Sections 9.0,  9.2
  Random Numbers: Section 3.11

  Rate this:

•

  Yury Gitman 7:32 pm on October 5, 2012 Permalink | Reply

  MidTerm Assignment, A “Simon Says Style Game”

  In this 3-week assignment, make a “Simon Says” Style Memory Game.

  Game Design Specs:
  This is a memory game.  A light/sound pattern is presented. The user copies that pattern. After a successful copy, the pattern gets longer. As the game progresses, the speed of the pattern presented increases. There is a conclusion of the game, Win or Lose.

  Physical Specs:
  ON/OFF POWER SWITCH  [toggle switch]
  4 LED’s
  4 Momentary Switches
  Battery Pack
  Speaker
  A physical enclosure to hold all.

  Vision and Enclosure Homework:
  3 Sketches, or Image Mock-up “Blue Sky Idea”, or Vision of the Physical form.
  3 Photo Found or Off Shelf Enclosures That you can “Tool”

  Publish Images on Blog BEFORE class, and present these 6 images in class.

  Sound Design Homework:
  1)  Make 3 Start-up Sound and light effect
  2)  Make 3 “You are Correct!” sound effect.
  3)  Make 3 “You are Wrong, you Dummy” sound effects.
  4)  Make 3 “You Lose, Shame on you and your family” sound effects.
  5)  Make 3 “You Win the Game Cheer or Effect”.

  Put these 15 (total) distinct tones into one Sketch, present them in class.
